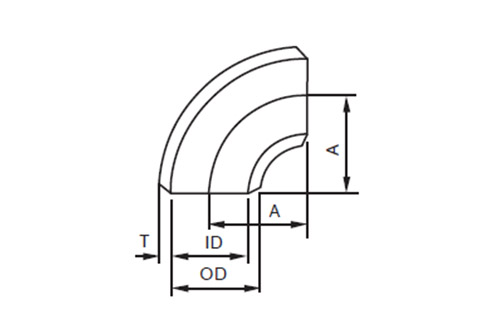

W-L90S 90°短徑對焊彎頭
詳細介紹
|
ANSI B16.9 B16.28
|
||||||
| Nominal Pipe Size |
Outside Diameter at Bevel |
Center to End | ||||
| Long Radius Elbow | Short Radius Elbow | |||||
| 90 Deg. | 45 Deg. | 90 Deg. | 45 Deg. | |||
| NPS | D | A | B | A | B | |
| 1/2 | 21.3 | 38.1 | 15.7 | |||
| 3/4 | 26.7 | 28.4 | 11.2 | |||
| 1 | 33.4 | 38.1 | 22.4 | 25.4 | ||
| 1-1/4 | 42.2 | 47.8 | 25.4 | 31.8 | ||
| 1-1/2 | 48.3 | 57.2 | 28.4 | 38.1 | ||
| 2 | 60.3 | 76.2 | 35.1 | 50.8 | ||
| 2-1/2 | 73.0 | 95.2 | 44.4 | 63.5 | ||
| 3 | 88.9 | 114.3 | 50.8 | 76.2 | 31.6 | |
| 3-1/2 | 101.6 | 133.4 | 57.2 | 88.9 | 36.8 | |
| 4 | 114.3 | 152.4 | 63.5 | 101.6 | 42.1 | |
| 5 | 141.3 | 190.5 | 79.2 | 127.0 | 52.6 | |
| 6 | 168.3 | 228.6 | 95.2 | 152.4 | 63.4 | |
| 8 | 219.1 | 304.8 | 127.0 | 203.2 | 84.2 | |
| 10 | 273.1 | 381.0 | 158.8 | 254.0 | 105.2 | |
| 12 | 323.9 | 457.2 | 190.5 | 304.8 | 126.3 | |
| 14 | 355.6 | 533.4 | 222.2 | 355.6 | 147.3 | |
| 16 | 406.4 | 609.6 | 254.0 | 406.4 | 168.3 | |
| 18 | 457.2 | 685.8 | 285.8 | 457.2 | 189.4 | |
| 20 | 508.0 | 762.0 | 317.5 | 508.0 | 210.4 | |
| 22 | 558.8 | 838.2 | 342.9 | 558.8 | 231.5 | |
| 24 | 609.6 | 914.4 | 381.0 | 609.6 | 252.5 | |
| 26 | 660.4 | 990.6 | 406.4 | 660.4 | 273.5 | |
| 28 | 711.2 | 1066.8 | 438.2 | 711.2 | 294.6 | |
| 30 | 762.0 | 1143.0 | 469.9 | 762.0 | 315.6 | |
| 32 | 812.8 | 1219.2 | 501.6 | 812.8 | 378.1 | |
| 34 | 863.6 | 1295.4 | 533.4 | 863.6 | 357.7 | |
| 36 | 914.4 | 1371.6 | 565.2 | 914.4 | 378.8 | |
| 38 | 965.2 | 1447.8 | 599.9 | |||
| 40 | 1016.0 | 1524.0 | 632.0 | 1016.0 | 420.8 | |
| 42 | 1066..8 | 1600.2 | 660.4 | 1066.8 | 441.9 | |
| 44 | 1117.6 | 1676.4 | 695.5 | 1117.6 | 462.9 | |
