產品介紹

  • 異徑由任

詳細介紹

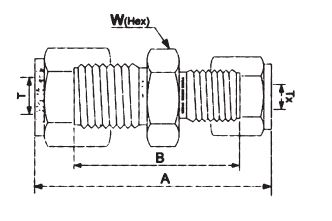

NO. TubeO.D A B W(Hex)
T TX in mm in mm in
T-RU-S3-20-10 1/8 1/16 1.22 31.0 0.81 20.6 7/16
T-RU-B1-20-10
T-RU-S3-30-10 3/16 1/16 1.27 32.3 0.86 21.8 7/16
T-RU-B1-30-10
T-RU-S3-30-20 3/16 1/8 1.44 36.6 0.92 23.4 7/16
T-RU-B1-30-20
T-RU-S3-40-10 1/4 1/16 1.35 34.3 0.91 23.1 1/2
T-RU-B1-40-10
T-RU-S3-40-20 1/4 1/8 1.52 38.6 0.96 24.4 1/2
T-RU-B1-40-20
T-RU-S3-40-30 1/4 3/16 1.55 39.4 1.00 25.4 1/2
T-RU-B1-40-30
T-RU-S3-50-20 5/16 1/8 1.56 39.6 1.00 25.4 9/16
T-RU-B1-50-20
T-RU-S3-50-40 5/16 1/4 1.66 42.2 1.08 27.4 9/16
T-RU-B1-50-40
T-RU-S3-60-10 3/8 1/16 1.44 36.6 1.00 25.4 5/16
T-RU-B1-60-10
T-RU-S3-60-20 3/8 1/8 1.61 40.9 1.06 26.9 5/8
T-RU-B1-60-20
T-RU-S3-60-60 3/8 3/8 1.70 43.2 1.12 28.4 5/8
T-RU-B1-60-60
T-RU-S3-60-80 3/8 1/2 1.74 44.2 1.16 29.5 5/8
T-RU-B1-60-80
T-RU-S3-80-20 1/2 1/8 1.78 45.2 1.12 28.4 13/16
T-RU-B1-80-20
T-RU-S3-80-40 1/2 1/4 1.85 47.0 1.16 29.5 13/16
T-RU-B1-80-40
T-RU-S3-80-60 1/2 3/8 1.91 48.5 1.22 31.0 13/16
T-RU-B1-80-60
T-RU-S3-100-60 5/8 3/8 1.94 49.3 1.25 31.8 15/16
T-RU-B1-100-60
T-RU-S3-100-80 5/8 1/2 2.05 52.1 1.25 31.8 15/16
T-RU-B1-100-80
T-RU-S3-120-40 3/4 1/4 1.94 49.3 1.25 31.8 11/16
T-RU-B1-120-40
T-RU-S3-120-60 3/4 3/8 2.00 50.8 1.31 33.3 11/16
T-RU-B1-120-60
T-RU-S3-120-80 3/4 1/2 2.11 53.6 1.31 33.3 11/16
T-RU-B1-120-80
T-RU-S3-120-100 3/4 5/8 2.11 53.6 1.31 33.3 11/16
T-RU-B1-120-100
T-RU-S3-160-80 1 1/2 2.39 60.7 1.51 38.4 13/8
T-RU-B1-160-80
T-RU-S3-160-120 1 3/4 2.36 59.9 1.51 38.4 13/8
T-RU-B1-160-120
．S3: Stainless Steel   ．B1:Brass
．Dimensions for reference only,subject change

NO. TubeO.D A B W(Hex)
T TX mm in mm in mm
T-RU-S3-03M-02M 3 2 35.3 1.39 22.1 0.87 12
T-RU-B1-03M-02M
T-RU-S3-06M-02M 6 2 38.6 1.52 24.6 0.97 14
T-RU-B1-06M-02M
T-RU-S3-06M-03M 6 3 38.6 1.52 24.6 0.97 14
T-RU-B1-06M-03M
T-RU-S3-06M-04M 6 4 39.5 1.56 25.4 1.00 14
T-RU-B1-06M-04M
T-RU-S3-08M-06M 8 6 42.3 1.67 27.4 1.08 16
T-RU-B1-08M-06M
T-RU-S3-10M-06M 10 6 44.5 1.75 29.6 1.17 17
T-RU-B1-10M-06M
T-RU-S3-10M-08M 10 8 45.0 1.77 30.2 1.19 17
T-RU-B1-10M-08M
NO. TubeO.D A B W(Hex)
T TX mm in mm in mm
T-RU-S3-12M-06M 12 6 47.1 1.85 29.6 1.17 21
T-RU-B1-12M-06M
T-RU-S3-12M-08M 12 8 47.7 1.88 30.0 1.18 21
T-RU-B1-12M-08M
T-RU-S3-12M-10M 12 10 48.7 1.92 31.0 1.22 21
T-RU-B1-12M-10M
T-RU-S3-16M-10M 16 10 49.5 1.95 31.9 1.26 24
T-RU-B1-16M-10M
T-RU-S3-16M-12M 16 12 52.0 2.05 31.9 1.26 24
T-RU-B1-16M-12M
T-RU-S3-18M-12M 18 12 53.5 2.11 33.3 1.31 27
T-RU-B1-18M-12M
T-RU-S3-25M-18M 25 18 61.0 2.40 38.6 1.52 35
T-RU-B1-25M-18M
T-RU-S3-25M-20M 25 20 62.3 2.45 40.0 1.57 35
T-RU-B1-25M-20M
