  • 外管外牙通孔接頭

詳細介紹
NO. Tube
O.D		 Pipe

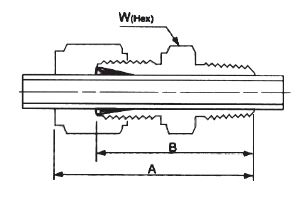

Thread		 A B W(Hex)
in mm in mm in
T-TMC-S3-10-10 1/16 1/16 0.93 23.6 0.78 19.8 5/16
T-TMC-B1-10-10
T-TMC-S3-10-20 1/16 1/8 1.03 26.2 0.88 22.4 7/16
T-TMC-B1-10-20
T-TMC-S3-20-10 1/8 1/16 1.17 29.7 0.91 23.1 7/16
T-TMC-B1-20-10
T-TMC-S3-20-20 1/8 1/8 1.20 30.5 0.94 23.9 7/16
T-TMC-B1-20-20
T-TMC-S3-20-40 1/8 1/4 1.40 35.6 1.14 29.0 9/16
T-TMC-B1-20-40
T-TMC-S3-30-20 3/16 1/8 1.23 31.2 0.97 24.6 7/16
T-TMC-B1-30-20
T-TMC-S3-30-40 3/16 1/4 1.43 36.3 1.17 29.7 9/16
T-TMC-B1-30-40
T-TMC-S3-40-20 1/4 1/8 1.29 32.8 1.00 25.4 1/2
T-TMC-B1-40-20
T-TMC-S3-40-40 1/4 1/4 1.49 37.8 1.20 30.5 9/16
T-TMC-B1-40-40
T-TMC-S3-50-40 5/16 1/4 1.52 38.6 1.23 31.2 9/16
T-TMC-B1-50-40
T-TMC-S3-60-40 3/8 1/4 1.57 39.9 1.28 32.5 5/8
T-TMC-B1-60-40
T-TMC-S3-60-60 3/8 3/8 1.57 39.9 1.28 32.5 11/6
T-TMC-B1-60-60
T-TMC-S3-60-80 3/8 1/2 1.83 46.5 1.53 38.9 7/8
T-TMC-B1-60-80
T-TMC-S3-80-80 1/2 1/2 1.93 49.0 1.53 38.9 7/8
T-TMC-B1-80-80
T-TMC-S3-100-120 5/8 3/4 1.99 50.5 1.59 40.4 11/16
T-TMC-B1-100-120
T-TMC-S3-120-120 3/4 3/4 1.99 50.5 1.59 40.4 11/16
T-TMC-B1-120-120
T-TMC-S3-160-160 1 1 2.45 62.2 1.97 50.0 13/8
T-TMC-B1-160-160
NO. Tube
O.D		 Pipe
Thread		 A B W(Hex)
in mm in mm in
T-TMC-S3-02M-20 2 1/8 30.5 1.20 23.8 0.94 12
T-TMC-B1-02M-20
T-TMC-S3-03M-20 3 1/8 30.5 1.20 23.8 0.94 12
T-TMC-B1-03M-20
T-TMC-S3-03M-40 3 1/4 36.0 1.42 29.0 1.14 14
T-TMC-B1-03M-40
T-TMC-S3-04M-20 4 1/8 31.5 1.24 24.6 0.97 12
T-TMC-B1-04M-20
T-TMC-S3-04M-40 4 1/4 36.3 1.43 29.8 1.17 14
T-TMC-B1-04M-40
T-TMC-S3-06M-20 6 1/8 33.7 1.33 26.1 1.03 14
T-TMC-B1-06M-20
T-TMC-S3-06M-40 6 1/4 38.2 1.50 30.6 1.20 14
T-TMC-B1-06M-40
T-TMC-S3-08M-40 8 1/4 40.2 1.58 32.0 1.26 14
T-TMC-B1-08M-40
T-TMC-S3-10M-40 10 1/4 41.0 1.61 33.3 1.31 17
T-TMC-B1-10M-40
T-TMC-S3-10M-60 10 3/8 41.0 1.61 33.3 1.31 17
T-TMC-B1-10M-60
T-TMC-S3-10M-80 10 1/2 46.5 1.83 38.9 1.53 21
T-TMC-B1-10M-80
T-TMC-S3-12M-80 12 1/2 49.0 1.93 39.0 1.54 21
T-TMC-B1-12M-80
T-TMC-S3-14M-80 14 1/2 50.2 1.98 38.9 1.53 24
T-TMC-B1-14M-80
T-TMC-S3-15M-80 15 1/2 50.2 1.98 38.9 1.53 24
T-TMC-B1-15M-80
T-TMC-S3-16M-80 16 1/2 49.0 1.93 38.9 1.53 24
T-TMC-B1-16M-80
T-TMC-S3-18M-80 18 1/2 50.5 1.99 40.4 1.59 27
T-TMC-B1-18M-80
T-TMC-S3-18M-120 18 3/4 50.5 1.99 40.4 1.59 27
T-TMC-B1-18M-120
T-TMC-S3-20M-120 20 3/4 53.0 2.09 42.9 1.69 30
T-TMC-B1-20M-120
T-TMC-S3-22M-160 22 1 58.0 2.28 47.0 1.85 35
T-TMC-B1-22M-160
T-TMC-S3-25M-160 25 1 62.9 2.48 50.2 1.98 35
T-TMC-B1-25M-160
．S3: Stainless Steel   ．B1:Brass     ．Dimensions for reference only,subject change
