Butt-weld Connector

Application

Tube to Pipe Butt-Weld includes body, nut and ferrule

Introduction

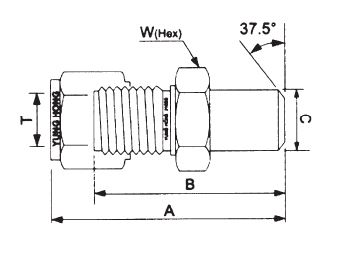

NO.	TubeO.D	Pipe Thread Weld	A		B		C		W(Hex)
	T		in	mm	in	mm	in	mm	in
T-BWC-S3-20-20	1/8	1/8	1.20	30.5	0.92	23.4	0.41	10.3	7/16
T-BWC-B1-20-20
T-BWC-S3-30-20	3/16	1/8	1.23	31.2	0.97	24.6	0.41	10.3	7/16
T-BWC-B1-30-20
T-BWC-S3-40-20	1/4	1/8	1.30	33.0	1.00	25.4	0.41	10.3	1/2
T-BWC-B1-40-20
T-BWC-S3-40-40	1/4	1/4	1.49	37.8	1.20	30.5	0.54	13.7	1/4
T-BWC-B1-40-40
T-BWC-S3-50-20	5/16	1/8	1.34	34.0	1.04	26.4	0.41	10.4	9/16
T-BWC-B1-50-20
T-BWC-S3-50-40	5/16	1/4	1.52	38.6	1.23	31.2	0.54	13.7	9/16
T-BWC-B1-50-40
T-BWC-S3-60-40	3/8	1/4	1.57	39.9	1.28	32.5	0.54	13.7	5/8
T-BWC-B1-60-40
T-BWC-S3-60-60	3/8	3/8	1.57	39.9	1.28	32.5	0.68	17.3	11/16
T-BWC-B1-60-60
T-BWC-S3-60-80	3/8	1/2	1.82	46.2	1.53	38.9	0.84	21.3	7/8
T-BWC-B1-60-80
T-BWC-S3-60-120	3/8	3/4	1.88	47.8	1.59	40.4	1.05	26.7	1^1/16
T-BWC-B1-60-120
T-BWC-S3-80-60	1/2	3/8	1.71	43.4	1.31	33.3	0.68	17.3	13/16
T-BWC-B1-80-60
T-BWC-S3-80-80	1/2	1/2	1.93	49.0	1.53	38.9	0.84	21.3	7/8
T-BWC-B1-80-80
T-BWC-S3-80-120	1/2	3/4	1.99	50.5	1.59	40.4	1.05	26.7	1^1/16
T-BWC-B1-80-120
T-BWC-S3-100-80	5/8	1/2	1.93	49.0	1.53	38.9	0.85	21.6	15/16
T-BWC-B1-100-80
T-BWC-S3-120-80	3/4	1/2	1.99	50.5	1.59	40.4	1.01	25.7	1^1/18
T-BWC-B1-120-80
T-BWC-S3-160-160	1	1	2.45	62.2	1.97	50.0	1.32	33.5	1^3/8
T-BWC-B1-160-160
．S3: Stainless Steel ．B1:Brass ．Dimensions for reference only,subject change

NO.	TubeO.D	Pipe Thread	A		B		C		W(Hex)
	T		in	mm	in	mm	in	mm	in
T-BWC-S3-03M-20	3	1/8	30.5	1.20	23.9	0.94	10.3	0.41	12
T-BWC-B1-03M-20
T-BWC-S3-04M-20	4	1/8	31.2	1.23	24.6	0.97	10.3	0.41	12
T-BWC-B1-04M-20
T-BWC-S3-06M-20	6	1/8	32.8	1.29	25.4	1.00	10.3	0.41	14
T-BWC-B1-06M-20
T-BWC-S3-06M-40	6	1/4	37.9	1.49	30.5	1.20	13.7	0.54	14
T-BWC-B1-06M-40
T-BWC-S3-08M-20	8	1/8	34.2	1.35	26.7	1.05	10.3	0.41	16
T-BWC-B1-08M-20
T-BWC-S3-08M-40	8	1/4	38.7	1.52	31.2	1.23	13.7	0.54	16
T-BWC-B1-08M-40
T-BWC-S3-08M-80	8	1/2	45.6	1.80	38.1	1.50	21.3	0.84	21
T-BWC-B1-08M-80
T-BWC-S3-10M-40	10	1/4	40.9	1.61	33.3	1.31	13.7	0.54	17
T-BWC-B1-10M-40
T-BWC-S3-10M-60	10	3/8	40.9	1.61	33.3	1.31	17.1	0.67	17
T-BWC-B1-10M-60
T-BWC-S3-10M-80	10	1/2	46.5	1.83	38.9	1.53	21.3	0.84	21
T-BWC-B1-10M-80
T-BWC-S3-12M-40	12	1/4	43.4	1.71	33.3	1.31	13.7	0.54	21
T-BWC-B1-12M-40
T-BWC-S3-12M-60	12	3/8	43.4	1.71	33.3	1.31	17.1	0.67	21
T-BWC-B1-12M-60
T-BWC-S3-12M-80	12	1/2	49.0	1.93	38.9	1.53	21.3	0.84	21
T-BWC-B1-12M-80
T-BWC-S3-14M-60	14	3/8	44.1	1.74	34.0	1.34	1.71	0.67	24
T-BWC-B1-14M-60
T-BWC-S3-15M-80	15	1/2	49.0	1.93	38.9	1.53	21.3	0.84	24
T-BWC-B1-15M-80
T-BWC-S3-16M-80	16	1/2	49.0	1.93	38.9	1.53	21.3	0.84	24
T-BWC-B1-16M-80
T-BWC-S3-18M-80	18	1/2	50.5	1.99	40.4	1.59	21.3	0.84	27
T-BWC-B1-18M-80
．S3: Stainless Steel ．B1:Brass ．Dimensions for reference only,subject change
