Product

  • Male Adapter

    Application
    Port to Male NPT (P.T.)
Introduction
NO. Tube
O.D.		 Pipe

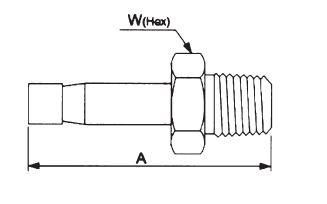

Thread		 A W(Hex)
in mm in
T-MA-S3-20-20 1/8 1/8 1.16 29.5 7/16
T-MA-B1-20-20
T-MA-S3-20-40 1/4 1/4 1.37 34.8 9/16
T-MA-B1-20-40
T-MA-S3-30-20 3/16 1/8 1.19 30.2 7/16
T-MA-B1-30-20
T-MA-S3-30-40 3/16 1/4 1.40 35.6 9/16
T-MA-B1-30-40
T-MA-S3-40-20 1/4 1/8 1.25 37.8 7/16
T-MA-B1-40-20
T-MA-S3-40-40 1/4 1/4 1.47 37.3 9/16
T-MA-B1-40-40
T-MA-S3-40-60 1/4 3/8 1.50 38.1 11/16
T-MA-B1-40-60
T-MA-S3-40-80 1/4 1/2 1.72 43.7 7/8
T-MA-B1-40-80
T-MA-S3-50-20 5/16 1/8 1.30 33.0 7/16
T-MA-B1-50-20
T-MA-S3-50-40 5/16 1/4 1.50 38.1 9/16
T-MA-B1-50-40
NO. Tube
O.D.		 Pipe
Thread		 A W(Hex)
in mm in
T-MA-S3-60-20 3/8 1/8 1.32 33.5 7/16
T-MA-B1-60-20
T-MA-S3-60-40 3/8 1/4 1.53 38.9 9/16
T-MA-B1-60-40
T-MA-S3-60-60 3/8 3/8 1.56 39.6 11/16
T-MA-B1-60-60
T-MA-S3-60-80 3/8 1/2 1.78 45.2 7/8
T-MA-B1-60-80
T-MA-S3-80-40 1/2 1/4 1.75 44.5 9/16
T-MA-B1-80-40
T-MA-S3-80-60 1/2 3/8 1.78 45.2 11/16
T-MA-B1-80-60
T-MA-S3-80-80 1/2 1/2 2.01 51.1 7/8
T-MA-B1-80-80
T-MA-S3-120-80 3/4 1/2 2.06 52.3 7/8
T-MA-B1-120-80
T-MA-S3-120-120 3/4 3/4 2.06 52.3 111/16
T-MA-B1-120-120
T-MA-S3-160-120 1 3/4 2.31 58.7 11/16
T-MA-B1-160-120
T-MA-S3-160-160 1 1 2.60 65.0 13/8
T-MA-B1-160-160
NO. Tube
O.D.		 Pipe
Thread		 A W(Hex)
mm in mm
T-MA-S3-06M-20 6 1/8 32.8 1.29 12
T-MA-B1-06M-20
T-MA-S3-06M-40 6 1/4 38.1 1.50 14
T-MA-B1-06M-40
T-MA-S3-08M-40 8 1/4 39.1 1.54 14
T-MA-B1-08M-40
T-MA-S3-10M-40 10 1/4 39.9 1.57 14
T-MA-B1-10M-40
T-MA-S3-10M-60 10 3/8 40.5 1.59 17
T-MA-B1-10M-60
T-MA-S3-10M-80 10 1/2 46.2 1.82 21
T-MA-B1-10M-80
T-MA-S3-12M-40 12 1/4 46.5 1.83 21
T-MA-B1-12M-40
T-MA-S3-12M-80 12 1/2 52.0 2.05 21
T-MA-B1-12M-80
T-MA-S3-28M-120 28 1 74.7 2.94 35
T-MA-B1-28M-120
