Product

  • Reducing Port Connector

    Application
    Tube to Port
Introduction

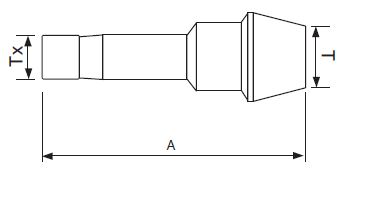

NO. Tube
O.D		 Reduced
Tube O.D.		 A
T Tx in mm
T-RPC-S3-20-10 1/8 1/16 0.68 17.3
T-RPC-B1-20-10
T-RPC-S3-40-10 1/4 1/16 0.71 18.0
T-RPC-B1-40-10
T-RPC-S3-40-20 1/4 1/8 0.89 22.6
T-RPC-B1-40-20
T-RPC-S3-60-20 3/8 1/8 0.91 23.1
T-RPC-B1-60-20
T-RPC-S3-60-40 3/8 1/4 0.98 24.9
T-RPC-B1-60-40
T-RPC-S3-80-40 1/2 1/4 1.15 29.2
T-RPC-B1-80-40
T-RPC-S3-80-60 1/2 3/8 1.21 30.7
T-RPC-B1-80-60
T-RPC-S3-120-80 3/4 1/2 1.51 38.4
T-RPC-B1-120-80
T-RPC-S3-160-80 1 1/2 1.68 42.7
T-RPC-B1-160-80
T-RPC-S3-160-120 1 3/4 1.73 43.9
T-RPC-B1-160-120
．S3: Stainless Steel   ．B1:Brass
．Dimensions for reference only,subject change

NO. Tube
O.D		 Reduced
Tube O.D.		 A
T Tx mm in
T-RPC-S3-06M-03M 6 3 22.6 0.89
T-RPC-B1-06M-03M
T-RPC-S3-08M-06M 8 6 24.7 0.97
T-RPC-B1-08M-06M
T-RPC-S3-10M-06M 10 6 25.0 0.98
T-RPC-B1-10M-06M
T-RPC-S3-10M-08M 10 8 26.0 1.02
T-RPC-B1-10M-08M
T-RPC-S3-12M-06M 12 6 29.1 1.15
T-RPC-B1-12M-06M
T-RPC-S3-12M-08M 12 8 29.8 1.17
T-RPC-B1-12M-08M
T-RPC-S3-12M-10M 12 10 30.4 1.20
T-RPC-B1-12M-10M
T-RPC-S3-16M-12M 16 12 36.2 1.43
T-RPC-B1-16M-12M
