ANA Adapter
ApplicationPort Flared Tube
Introduction

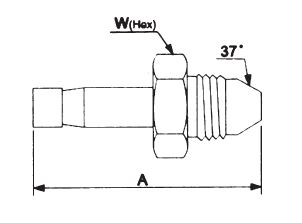

| NO. | Tube O.D |
37º Flare Size |
A | W(Hex) | |
| in | mm | in | |||
| T-ANA-S3-40-40 | 1/4 | 1/4 | 1.46 | 37.1 | 1/2 |
| T-ANA-B1-40-40 | |||||
| T-ANA-S3-60-40 | 3/8 | 1/4 | 1.52 | 38.6 | 1/2 |
| T-ANA-B1-60-40 | |||||
| T-ANA-S3-60-60 | 3/8 | 3/8 | 1.56 | 39.6 | 5/8 |
| T-ANA-B1-60-60 | |||||
| T-ANA-S3-80-80 | 1/2 | 1/2 | 1.90 | 48.3 | 13/16 |
| T-ANA-B1-80-80 | |||||
| T-ANA-S3-120-120 | 3/4 | 3/4 | 2.20 | 55.9 | 11/8 |
| T-ANA-B1-120-120 | |||||
| T-ANA-S3-160-160 | 1 | 1 | 2.60 | 66.0 | 13/8 |
| T-ANA-B1-160-160 | |||||
