Product

  • Bulkhead Famale Connector

    Application
    Tube to Female NPT (P.T. ) includes body, nut and ferrule
Introduction
NO. Tube
O.D		 Pipe

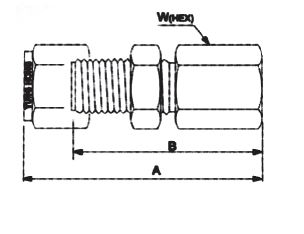

Thread		 A B W(Hex) BulKhead Hole Drill Size Max. Bulkhead thickness
in mm in mm in in in
T-BFC-S3-40-40 1/4 1/4 2.04 51.8 1.75 44.5 3/4 29/64 13/32
T-BFC-B1-40-40
T-BFC-S3-50-80 5/16 1/2 2.38 60.5 2.08 52.8 3/4 33/64 7/16
T-BFC-B1-50-80
T-BFC-S3-60-40 3/8 1/4 2.17 55.1 1.88 47.8 3/4 37/64 7/16
T-BFC-B1-60-40
T-BFC-S3-80-60 1/2 3/8 2.43 61.7 2.03 51.6 15/16 49/64 1/2
T-BFC-B1-80-60
T-BFC-S3-80-80 1/2 1/2 2.63 66.8 2.23 56.6 11/16 49/64 1/2
T-BFC-B1-80-80
T-BFC-S3-100-80 5/8 1/2 2.65 67.3 2.25 57.2 11/16 57/64 1/2
T-BFC-B1-100-80
T-BFC-S3-120-120 3/4 3/4 2.90 73.7 2.5 63.5 13/8 11/64 21/32
T-BFC-B1-120-120
T-BFC-S3-140-120 7/8 3/4 3.18 80.8 2.78 70.6 13/8 19/64 3/4
T-BFC-B1-140-120
T-BFC-S3-160-160 1 1 3.68 93.5 3.19 81.0 15/8 121/64 3/4
T-BFC-B1-160-160
NO. Tube
O.D		 Pipe
Thread		 A B W(Hex) BulKhead Hole Drill Size Max. Bulkhead thickness
mm in mm in mm mm mm
T-BFC-S3-06M-40 6 1/4 51.1 2.01 44.5 1.75 19 11.5 10.0
T-BFC-B1-06M-40
T-BFC-S3-08M-20 8 1/8 50.0 1.97 42.2 1.67 17 13.0 11.2
T-BFC-B1-08M-20
T-BFC-S3-08M-40 8 1/4 54.6 2.15 47.2 1.86 19 13.0 11.2
T-BFC-B1-08M-40
T-BFC-S3-10M-40 10 1/4 58.2 2.29 47.2 1.86 21 16.2 11.2
T-BFC-B1-10M-40
T-BFC-S3-10M-60 10 3/8 59.9 2.36 49.0 1.93 21 16.2 11.2
T-BFC-B1-10M-60
T-BFC-S3-10M-80 10 1/2 64.3 2.53 53.6 2.11 27 16.2 11.2
T-BFC-B1-10M-80
T-BFC-S3-12M-60 12 3/8 62.2 2.45 52.3 2.06 24 19.5 12.5
T-BFC-B1-12M-60
T-BFC-S3-12M-80 12 1/2 66.5 2.62 57.2 2.25 27 19.5 12.5
T-BFC-B1-12M-80
T-BFC-S3-15M-80 15 1/2 67.4 2.65 57.9 2.28 27 22.7 12.5
T-BFC-B1-15M-80
T-BFC-S3-16M-80 16 1/2 67.3 2.65 57.9 2.28 27 22.7 12.5
T-BFC-B1-16M-80
T-BFC-S3-18M-80 18 1/2 72.1 2.84 62.5 2.46 27 26.0 16.5
T-BFC-B1-18M-80
T-BFC-S3-18M-120 18 3/4 75.7 2.98 62.5 2.58 35 26.0 16.5
T-BFC-B1-18M-120
