Product

  • PGL Type Waterproof Conduit Round Outlet Boxes

    Application
    ・ Accommodates wiring devices and provides opening to splice, tap or pull conductors.
    ・ Provide access to conductors for maintenance and future system changes.
    ・Waterproof & Dustproof.
Specification
  • Material
  • Finish
  • Code
  • Gray Iron
  • Hot Dip Galvanized
  • H
  • Ductile Iron
  • Hot Dip Galvanized
  • H2
  • Ductile Iron
  • H.D.G&PVC Coating
  • P
  • Stainless Steel 304
  •
  • S4
  • Stainless Steel 316
  •
  • S6
  • Aluminum Alloy
  •
  • AL

Note

Standard Material: Gray Iron & Ductile Iron / Standard Finish: Hot Dip Galvanized
Other Material/Finish can be produced by order

  • Thread Standards
  • Code
  • BSPT
  • P
  • NPT
  • N

How to Order

For optional thread standards of PG* Type Box, add the suffix "P, N" for thread to the
end of Cat.No., optional material of PG* Box, add the suffix"-H, H2, P, S4, S6, AL"
after the thread code. Ex: R-PGT-06P-H⋯
Optional type "*" are "A", "C", "L", "T", "X"

Introduction

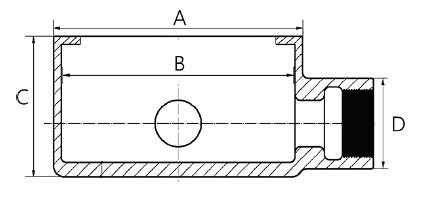

Cat.NO. Conduit Size Dimensions (mm)
Cat.NO. Hub Size A B C D
R-PG*-04P 1/2" 91 80 43 29
R-PG*-06P 3/4" 91 80 43 34
R-PG*-1P 1" 103 91 50 40
.Tolerance:±5%
