GS Type Outlet Boxes with Hub Cover
ApplicationTo provide access to conductors for pulling, dividing and maint enance. Hub cover include set screws for locking to lighting fixture stems.
Specification
- Material
- Finish
- Code
- Gray Iron
- Hot Dip Galvanized
- H
- Ductile Iron
- Hot Dip Galvanized
- H2
- Ductile Iron
- H.D.G&PVC Coating
- P
- Stainless Steel 304
- S4
- Stainless Steel 316
- S6
- Aluminum Alloy
- AL
Note
Standard Material: Gray Iron & Ductile Iron / Standard Finish: Hot Dip Galvanized
Other Material/Finish can be produced by order
- Thread Standards
- Code
- BSPT
- P
- NPT
- N
How to Order
For optional thread standards of GS, add the suffix "P,N" for thread to the end
of Cat.No.,optional material of GS, add the suffix"-H, H2, P, S4, S6, AL" after
the thread code. Ex: R-GS-06P-H⋯
Introduction

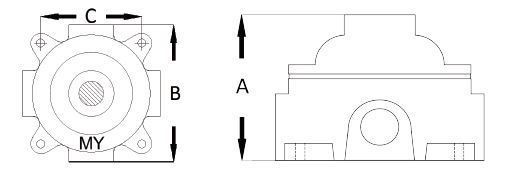

.JPG)
| Cat.NO. | Conduit Size | Dimensions (mm) | |||
| Cat.NO. | Hub Size | A | B | C | |
| R-GS-04 | 1/2" | 83 | 125 | 88 | |
| R-GS-06 | 3/4" | 83 | 125 | 88 | |
| ．Tolerance：±5% | |||||
