T Type Conduit Outlet Boxes
ApplicationTo provide access to conductors for pulling, dividing and maintenance. Threaded for rigid conduit RMC and IMC.
Specification
- Material
- Finish
- Code
- Gray Iron
- Hot Dip Galvanized
- H
- Ductile Iron
- Hot Dip Galvanized
- H2
- Ductile Iron
- H.D.G&PVC Coating
- P
- Stainless Steel 304
- S4
- Stainless Steel 316
- S6
- Aluminum Alloy
- AL
Note
Standard Material: Gray Iron & Ductile Iron / Standard Finish: Hot Dip Galvanized
Other Material/Finish can be produced by order
- Thread Standards
- Code
- BSPT
- P
- NPT
- N
How to Order
For optional thread standards of T Type Outlet Box, add the suffi x "P,N" for thread to
the end of Cat No., optional material of T Type outlet Box, add the suffix "-H, H2, P,
S4, S6, AL" after the thread code. Ex: R-T-04P-AL, R-T-3N-H⋯
Introduction

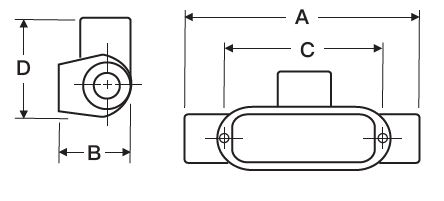

| Cat.NO. | Conduit Size | Dimensions (mm) | |||
| Cat.NO. | Hub Size | A | B | C | D |
| R-T-04 | 1/2" | 135 | 38 | 86 | 56 |
| R-T-06 | 3/4" | 160 | 44 | 103 | 62 |
| R-T-1 | 1" | 174 | 48 | 116 | 67 |
| R-T-12 | 1-1/4" | 201 | 63 | 128 | 86 |
| R-T-15 | 1-1/2" | 217 | 65 | 142 | 92 |
| R-T-2 | 2" | 236 | 81 | 159 | 109 |
| R-T-25 | 2-1/2" | 333 | 110 | 225 | 146 |
| R-T-3 | 3" | 409 | 129 | 285 | 181 |
| R-T-4 | 4" | 480 | 153 | 360 | 213 |
| ．Tolerance：±5% | |||||
